Eddystone
Broadcast XE50
50W FM Exciter Transmitter 50 Watt
Watts
The XE50 is a highly advanced, fully featured
broadcast FM exciter that is also ideally
suited for use as a low power stand alone
transmitter. Use of wideband design techniques
means that frequency setting is easily achieved
from soft keys on the front panel with no
further tuning required. This facility may be
password protected. 50W Exciter Transmitter Low
Power.
The frequency can also be remotely controlled
if needed via the RS232 or TCP/IP ports on the
rear of the unit. The XE50 uses the updated
highly linear modulator to give superb sound
reproduction with freedom from overshoots and
artefacts. It will operate into any load
without damage thanks to its VSWR cut back
circuit that protects the power amplifier stage
from adverse operating conditions. Stand Alone
Low Power FM Transmitter Exciter 50 Watt Watts.

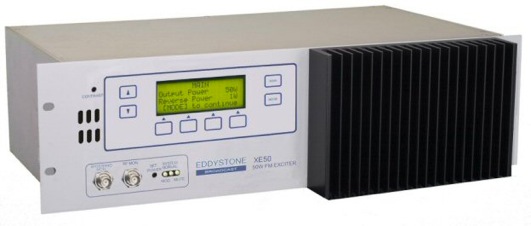

The XE50 front panel display shows forward and
reflected power together with internal voltages
and the modulation level. Quick view LED’s show
advanced status information, including system
normal, Mute and Modulation alarm. The
modulation alarm, gives broadcasters alarm
status outputs and indications that will show
loss of mod audio or over modulation. Eddystone
XE50 FM Broadcast Low Power Transmitter
Exciter.
XE50
50W FM Exciter Transmitter 50 Watt
Watts
A front panel monitor point for RF output
is provided as is a fully buffered baseband
monitor for accurate monitoring of the
modulator input. The rear panel includes a
remote control/monitoring socket that
allows carrier muting and status signalling
to an external system, additionally data
sockets are provided for use with systems
that have the ability to control exciters
via RS232 or TCP/IP, these sockets are also
used for programming advanced features
within the XE50. FM Exciter Low Power
Transmitter Eddystone XE50.
The XE50 is fully compatible with N+1
systems, with remote frequency selection
being achieved by either RS232/TCPIP
interface or rear panel logic selection of
up to 6 preset frequencies. Very
conservatively rated components and a
switch mode DCDC converter are used to
ensure extremely high reliability and to
give good efficiency. FM Low Power
Transmitter Exciter 50W 50 Watt Watts
Eddystone.
A comprehensive range of input options is
available. The XE50 has a
multiplex/composite input, mono input and 3
SCA/RDS inputs. The XE50/S includes a
stereo limiter and stereo encoder, the
AES/EBU input version allows for a stereo
digital input and the XE50/RBRX includes a
rebroadcast receiver for
translator/rebroadcast applications.
Eddystone FM Broadcast Exciter
Transmitter.
Frequency
range
Frequency stability
Power output
Harmonic & spurious output
Spurious outputs
AM noise
Input sensitivity
MPX response
AF THD (multiplex version)
Power supply (AC)
Power consumption
Temperature (operating)
Humidity (operating)
Dimensions
Weight
Warranty
< ± 200Hz
1 - 50W
< -70dBc (30MHz to 1GHz)
< -100dBc (87.5MHz to 137MHz @ fc± 0.5MHz)
< 0.5% @ ± 40kHz deviation
+ 8dBu (adjustable) for ± 75kHz deviation
< ± 0.5dB (5Hz - 100kHz)
< 0.15% @ ± 75kHz deviation
100/115/230V ± 10%, 50/60Hz
< 150VA
-20C to 55C
< 95% RH, non condensing
132mm high (3U) x 443mm wide x 315mm deep (inc. heatsink & connectors)
6kg
5 Years
In line with our policy of continual development, we reserve the right to alter specifications without notice.
